George Westinghouse Jr.
Engineering Pioneer & Businessman (1846 Schoharie, NY - 1914 New York, NY)
George Westinghouse Jr. was one of the top innovators of his time, first as an inventor himself, and later guiding other inventors and the direction of Westinghouse Electric Company. Later in his life he dropped the "Jr" and is known today simply as "George Westinghouse".
Life:
George Westinghouse Jr. (today known as George Westinghouse) was born into a family of industry. His father George Sr. operated a small company producing farm machinery. The family moved several times as fire destroyed the family business and more than once his father had to start all over again. After a fire burnt down their workshop in Central Bridge New York (Esperance, Schoharie County) they moved to Schenectady, New York. Here his father established a successful factory along the Erie Canal on Dock Street.
Young George often skipped school and tinkered at his father's factory. He was surrounded by some of the country's best craftsmen as Schenectady housed the Schenectady Locomotive Works as well as Westinghouse's growing factory.
He joined the armed services in 1863 and later became Third Assistant Engineer on the USS Muscoota. He returned to Schenectady in 1865 and went to Union College. He dropped out of school in the first semester and proceeded to work on inventions.
George developed his first major invention, the rotary steam engine. This was based on the concept that a steam engine channeling steam pressure through a spinning axis was more efficient than the reciprocating steam engines of the time. His invention is related to the steam turbine which came along later in the 1880s.
He went on to make a number of other inventions, although he found it very difficult to sell his inventions to companies, even after successful demonstrations.
He was married in 1867 to Marguerite Erskine Walker and moved to Pittsburgh where he believed he would find more companies open to funding his inventions and development processes.
The Airbrake:

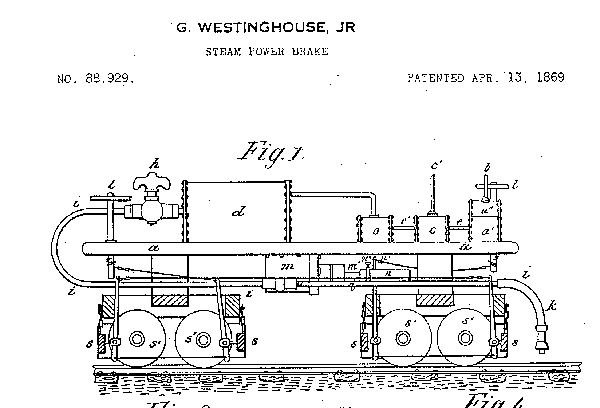

1869 proved to be a landmark year for George, he invented a railroad braking system which revolutionized rail safety. While on the third floor of the Furman Block on State Street in Schenectady he reflected on a horrible train wreck he had witnessed while riding on the Mohawk and Hudson Railroad, and he came upon a solution to how to get a train to stop quickly. Previously trains were stopped by people (usually impoverished boys) hired to stay on top of train cars turning mechanical break wheels. This slowed trains very gradually and resulted in many boys being crushed between rail cars as the job was extremely dangerous with low pay. George's invention worked with compressed air which released brakes off the wheels, if air pressure was lowered, or accidentally leaked, the brakes would activate. This system is the root of modern rail braking systems and related to brakes for large trucks.
Westinghouse Air Brake Company was organized to sell his invention and it was universally adopted by all rail companies. New York Central was the last company to adopt this system after a final test between Westinghouse and the New York Air Brake Company systems.
|
Above: solid metal pipes mounted under each train car to carry steam pressure. |
Westinghouse brake system on outside front of wheels. |
|
Above The original Westinghouse airbrake on two passenger cars from the 1880s still in use on the Durango and Silverton Railroad. A second air brake system is seen here which works by braking on positive pressure, thus brakes more smoothly. Westinghouse's brakes braked on loss of pressure for safety, this is a bit jerky in motion and is now used just as a backup. |
Electrical Development:
By the early 1880s Edison's DC systems had just dazzled the world, however
in Europe AC power was in it's infancy and it began to capture the attention
of American electrical engineers. While Edison, Brush, Sprague
and Thomson had a stranglehold on DC systems,
Westinghouse sensed opportunity with alternating current.
Westinghouse bought into the AC world by buying patent rights to the Gaulard
and Gibbs transformer. He hired William
Stanley and lawyer Franklin Pope to develop a more useful and reliable
transformer. Simultaneously other companies in North America like Thomson-Houston
in Lynn, MA also bought AC apparatus from Europe to try to develop their
own systems. Westinghouse funded Stanley's experiments in Great
Barrington in 1886. The results shocked the world as Stanley
created the first reliable transformer and demonstrated lighting the downtown.
George Westinghouse came up to see the system personally and was pleased.
Westinghouse hired Oliver Shallenberger to develop the induction meter
which allowed them to measure AC power. Coming up with the meter was very
important as it allowed a way to measure power and therefore make AC systems
profitable.
In 1888 Westinghouse joined the polyphase
AC scene when it purchased rights to the induction motor. The
induction motor was able to start itself up which is something that DC
had an advantage with before. Galileo
Ferraris developed the polyphase induction motor and Nikola Tesla
created his own design the same year. Westinghouse bought rights
to both to be sure and proceeded to develop AC power sites as an experiment.
War of Currents:
Westinghouse was able to buy AC patents developed in Europe and nationally
and was able to attract talent. Edison fired many great engineers
for talking about AC development, people like CS Bradley who developed
the first 3-phase generator. While Edison
tried to market DC the AC scene was creeping up all over the world.
The end of the War of Currents was at the International Electrotechnical
Exposition in Frankfurt Germany in 1891. This event and demonstration
of AC power proved to be the definitive moment. After this JP Morgan
swooped in and consolidated many of Edison's companies along with his
competitors like Thomson-Houston and Brush to form General Electric.
General Electric proved to be a formidable competitor against Westinghouse
since it had many of it's own AC experts and was actively recruiting young
electrical engineers from Europe. Westinghouse hired Benjamin G.
Lamme in 1889 and soon he lead AC power development at the company.
Westinghouse Rises: Timeline of landmark AC Power Plants:
1886 - Great Barrington, MA
1890 - Willamette Falls (Oregon City Falls),
OR
1891 - Telluride, CO (Ames Power Plant)
1893 - World's Columbian Exposition
1895 - Willamette Falls Powerhouse B
1895 - Niagara Falls, NY (Adams Power Station)
1899 - Steam turbine AC generator at
the Hartford Electric Company
Steam Turbines:
The two known ways to produce electric power in the early years were hydro
power and reciprocating steam engines
Westinghouse knew that reciprocating steam engines were inherently inefficient
when he was still a teenager. Finally in 1884 Charles A. Parsons developed
a practical steam turbine. Westinghouse
was quick to buy up rights to the turbine and start developing it further.
By 1898 he had a 300 kW steam turbine powering part of his air brake factory.
Final Years:
George Westinghouse stepped down from control of the company in 1907.
His health quickly declined and he died in 1914 in New York City.
The Westinghouse Company lived on until the 1980s and 90s when many divisions
of the company were sold off and the company shifted into media (CBS Corporation).
The company lives on in name, and it's nuclear division remains, however
the bulk of the company and its manufacturing line is now closed.
Related Topics:
Diesel Electric Locomotives
Trolleys and Light Rail
Steam Trains
Electric Motors
Dynamos and Generators
Article by M. Whelan and Steve Rockwell
Sources:
George Westinghouse: Gentle Genius by Quentin R. Skrabec Jr.
Interview with Historian Tom Blalock, Edison Tech Center. 2014
Wikipedia: George Westinghouse
Wikipedia: Steam Engine
Electrical Giant Started Here, by Don Rittner, Schenectady County Historian
Alternating Current Development in America. William Stanley
If you are a historian and wish to correct facts or publish a commentary or embedded article feel free to contact us.
