The History of Electrification:

Ames and Smuggler-Union Power Plants at Telluride


Telluride is one of many mining towns in the San Juan Mountains of Colorado


Telluride, Colorado was an important location in the history of mining in the American West and the Ames Power Plant was an important testing ground for  AC power in the 1890s and Westinghouse's success at Ames help result in it winning the landmark Niagara Falls power plant project of 1895. Other small historic hydroelectric sites like Smuggler-Union continue to operate in the region. Mining was capable of being a lucrative business which had the capital needed to support the high costs of building early electric power sites. The intense demands of mining have always pushed engineers to test the limits of electric power technology.

The Ames Power Plant 1891:


The Ames Plant ran on water power.  The original plant had one Pelton turbine supplying a generator.  It supplied the Gold King Mine with electric power from 2.5 miles away.  It is still in operation today and is run by Xcel Energy, although it has been upgraded with two Pelton turbines and a 3.6 MW generator.

Historic Specifications:


Year finished: 1891
3000 V
133 Hz
Single Phase
Transmission distance: 2.5 miles

Major Engineers of this site:


George Westinghouse's AC power team included geniuses Benjamin Lamme and Oliver Shallenberger. He also had bought rights to some of Nikola Tesla's patents. This plant was a chance to test new ideas and new designs.
More on the great engineers of the 1890s >

The Story of Ames:


Lucien L. Nunn was looking for a power source to run his mine.  Steam engines were getting more and more expensive to run since all the trees had been cut down in the region and fuel had to be brought up the mountains. He considered hydro power and asked George Westinghouse if he would build him a plant using the new AC system which could send power over distance without use of a very thick and expensive wire (which was needed for a DC system).

The system took a year to build and powered a 100 horsepower electric motor at the mine. Lightning was constantly damaging the system as Colorado gets frequent and powerful storms. The lightning arrestor had not yet been perfected for protecting power systems.

See this article by Alfred Hughes and Richard Rudolph with more details about the Ames Power Plant.




The Smuggler-Union Power Plant 1907:

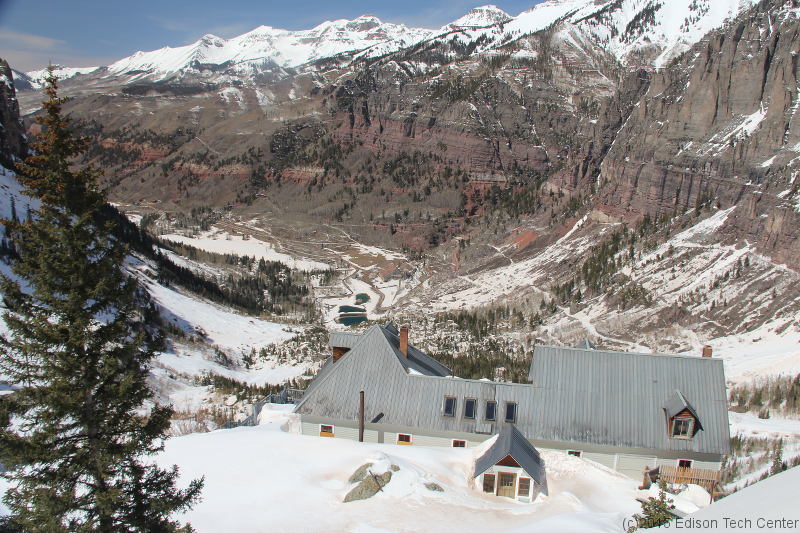

This power station at the end of the box canyon in which Telluride is located was built to supply the Smuggler-Union Mine and Mill. Construction started in 1904. It is one of the oldest AC power stations still in use and it's location next to Bridal Veil Falls makes it uniquely beautiful.  It is quite possibly the most aesthetically beautiful power plant in North America.  It's classic design and non-intrusive water diversion makes it blend well with the natural beauty around it.
Left: The Smuggler-Union hydroelectric plant currently produces 500 kW of power and is run by San Miguel Power Association. The generator in the basement produces 2300 volts.

The plant sluiced water from Blue Lake in the valley above. The water is channelled into pipes and the output pipes can be seen in the photo above to the left of the plant going down the cliff. The plant stopped operating in 1953 and was placed on the National Register for Historic Places in 1979. It has since been restored to working order.

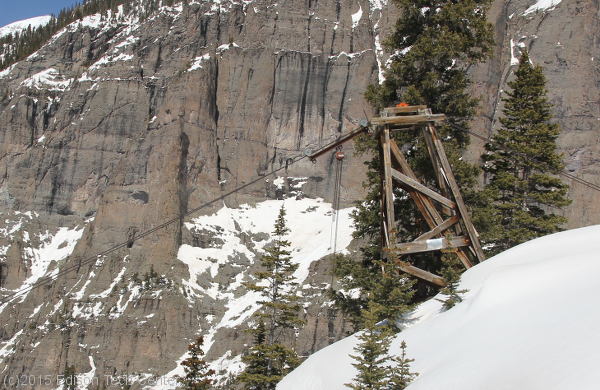

One of the tram cables used to haul people and supplies up from below


Hiking, skiing or snowshoeing up to this power plant is certainly worth the trip.


More Historic Power Plant Sites

Mechanicville Power Station, Mechanicville, New York 1897


Redlands Mill Creek 1 powerhouse Redlands, CA 1893

Schaghticoke Power Station and Steinmetz's monocyclic power experiment

Great Barrington 1886 The first AC power distribution system using transformers


Related Pages:

Electric Motors

AC Power History

Hydroelectric Power

Wind Turbines

Dynamos and Generators

More Stuff
Photos and article by M. Whelan
